Sanitary Heat Exchanger

Description: High pressure sanitary shell and tube heat exchangers. Highly efficient designs, with shell diameters ranging from 3/4" to 2" produce heat transfer rates up to 60kW with flow rates up to 1000L/hr.
Catalog Number: Cat.Sanitary Heat Exchanger
Price:
USD
$1,200.00   Login for Discount
    Please select the information you wantX
  • Specification:
    HPE-100 HPE-150 HPE-250 HPE-350 HPE-450 HPE-5000
  • Material:
    316L Stainless Steel Titanium (Resistant to strong acid and base)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description

Description:
High pressure sanitary shell and tube heat exchangers. Highly efficient designs, with shell diameters ranging from 3/4" to 2" produce heat transfer rates up to 60kW with flow rates up to 1000L/hr.



Application:
Homogenizer | Extruder | Biotechnology | Fuel cell | Semiconductor

High Pressure: Pressure up to 5,000 psi
Sanitary: 316L Stainless Steel
Compatible: Tri-clamp, NPT, UNF, Flange and custom fittings are available
Efficient: Small diameter tubes, closely packed for maximum effectiveness Compatibility: GMP and FDA compliant

Specifications

Catalog No.

HPE-100

HPE-150

HPE-250

HPE-350

HPE-450

HPE-5000

Flow rate

200ml/min

300ml/min

500ml/min

100L/hr

200L/hr

500L/hr

HT. Rate

~10W/℃

~15W/℃

~25W/℃

~200W/℃

~250W/℃

~3000 W/℃

Max. Pressure

5,000psi

5,000psi

5,000psi

1,500psi

1,500psi

1,500psi

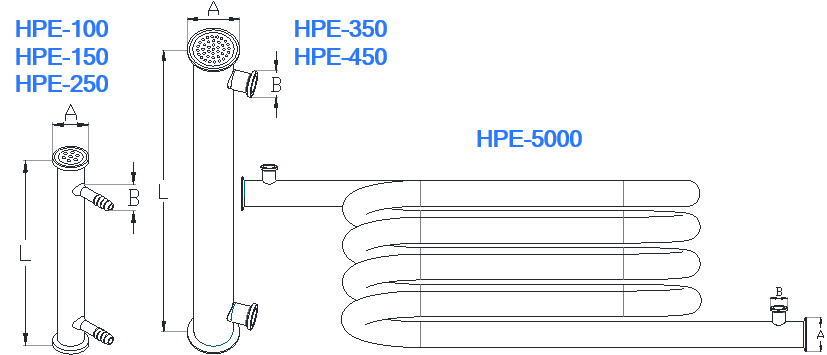

A connection 1/2" 1/2" 1/2" 1" 1" 1"
B connection Pagoda Pagoda Pagoda 1/2" 1/2" 1/2"
Length 100mm 150mm 250mm 350mm 450mm 5000mm

Dimensions(cm)

25×40×100

25×40×150

25×40×250

50×70×350

50×70×450

550 × 500 × 450

Weight

200 g

200 g

250 g

1 kg

2 kg

15 kg

Max. Temp.

-190ºC-250ºC (-310ºF-482ºF)

Fitting

Tri-clamp

Sterilizing

CIP/SIP

Application

Processing equipment|Condensing and evaporating|Regenerative heat transfer|Process fluid temperature control|Batch process cooling or heating|Cryogenic cooling|Sample cooling|Clean steam condensing and sub-cooling|Temperature control of high purity product

Features

Sanitary for pharmaceutical industry


Standard Features

Parts

9/16UNF M to 1" Tri-Clamp, 3/4-16UNF M to 2" Tri-Clamp

Surfacing

Electro-polish and inner Passivation

Application

Processing equipment
Condensing and evaporating
Regenerative heat transfer
Process fluid temperature control
Batch process cooling or heating
Cryogenic cooling; Sample cooling
Clean steam condensing and sub-cooling
Temperature control of high purity product

Inlet type

1" or 2" Tri-Clamp

Outlet type

1" or 2" Tri-Clamp

Feed Reservoir

SUS316 Cylinder

Collector Reservoir

SUS316 Cylinder

Product material

316L stainless steel

Material standard

Pharmaceutical Grade, FDA, GMP

Warranty

1 year against any manufacturing defects


Option Features

Parts

Tri-clamp, NPT, UNF, Flange and custom fittings are available

Customer

Customer size for larger flow rate

Detector

Pressure gauge, Pressure transducer, Temperature transducer

Outlet type

NPT, UNF, Flange and custom fittings are available

Feed Reservoir

100ml, 200ml, 500ml, 1000ml Syringe, Cylinder or Online

Collector Reservoir

100ml, 200ml, 500ml, 1000ml Syringe, Cylinder or Online

Cylinder

Titanium (Resistant to strong acid and base)
