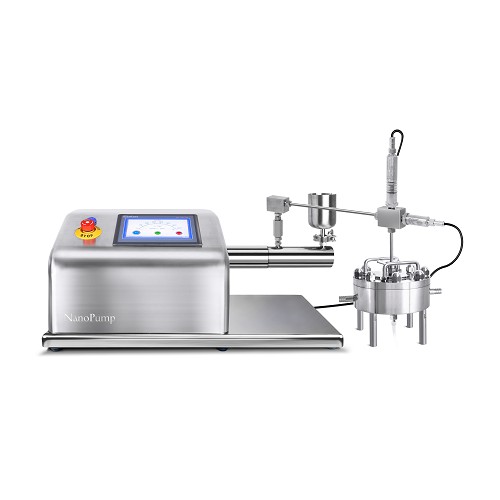

Nanopump (Sanitary Stainless)

Sanitary NanoPump is used for sanitary transfer of laboratory sample of fluid with pressure
Catalog Number: Cat. Nanopump
Price:
USD
$8,000.00   Login for Discount
    Please select the information you wantX
  • Pressure:
    300bar 500bar 600bar 800bar 1000bar 1200bar 1500bar 2000bar
  • Flow Rate:
    25mL/min 30mL/min 50mL/min 60mL/min 100mL/min 120mL/min 8L/hr 10L/hr 18L/hr 30L/hr
  • IQ/OQ Installation and Operational Qualification:
    IQ/OQ
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
  • How to Use
  • FAQ and Tips
  • How to Ordering
Description:
Sanitary Piston Pump to 2000bar with electric power and Flow controllable.

Application:
Sanitary Deivery of the Liquid
Pressure Pump in Liposome Extruding

Performance:
Small (Integrated design deliver the light weight and small dimensions)
Smart (Programming control systems confer diligent functions)
Silent (Noiseless performance with high energy efficiency)
Strong (More than 30L/hr at 300 bar)
CE compliant and RoHs compliant

Specification
Catalog No. Nanopump-1500 Nanopump-1000 Nanopump-800  Nanopump-600 Nanopump-300
Flow rate 6L/hr 8L/hr 10L/hr 18L/hr 30L/hr
Min. Volumn 20mL 20mL 20mL 50mL                      100mL
Max. Pressure 1500bar              1000bar 800bar 600bar 300bar
Dimensions(cm) 85 × 40 × 36 85 × 40 × 36 85 × 40 × 36 85 × 40 × 36  85 × 40 × 36
Weight 60 kg (130 lbs) 60 kg (130 lbs) 60 kg (130 lbs) 55 kg (120 lbs) 50 kg (110 lbs)
Max. Temp. 80ºC (176ºF)
Power 110V/220V
Cleaning Flush to clean/CIP/SIP
Application Stainless pump, Sanitary pump the liquid in the pharmaceutical or biological applications
Features Digital display of pressure or pressure gauge

Standard Features
Parts 1 set of Diamond interaction chamber
Control System High pressure programming control systems®: Touch Screen, Speed control, Auto stop control by volume, time, pressure or temperature, settable volume control as low as 1ml, display of flow rate and time, overload protection
Pressure Gauge Electric
Inlet type 1" Triclamp
Outlet type 1" Triclamp
Inlet Reservoir 50mL/100mL/200mL/500mLSyringe; 500mL/1L/2L Stainless Cylinder
Outlet Reservoir 50mL/100mL/200mL/500mLSyringe; 500mL/1L/2L Stainless Cylinder
Product material 316L stainless steel, Tungsten Carbide, Viton, Teflon
Material standard Pharmaceutical Grade, FDA, GMP
Warranty 1 year against any manufacturing defects

Option Features
Parts High Pressure Extruders, Homogenizing valves, Heat Exchanger
Control System Tradition mechanical control: Speed, start, stop control
Detector Pressure gauge, Pressure transducer, Temperature transducer
Outlet type 2" Tri-clamp or Luer
Inlet Reservoir 10ml, 20ml, 50ml, 100ml, 200ml, 500ml Syringe, Tank or Online
Outlet Reservoir 10ml, 20ml, 50ml, 100ml, 200ml, 500ml Syringe, Tank or Online
Cylinder Titanium High pressure Cylinder (Resistant to strong acid and base)

Varieties of Inlet and Outlet for Nanopump
Inlet:  Syringe; Open Container; Stailess Steel Cylinder
Outlet: Syringe; Open Container; Stailess Steel Cylinder
High Pressure Homogenizer Inlet and Outlet


Dissemble the seal


Assemble the seal



PRESSURE AND CHAMBER SELECTION FOR VARIOUS APPLICATIONS with NANOGENIZER

Cells Mammalian cell
Insect cell Bacteria cell Yeast cell Algae cell SPore
Sample CHO|Hela Sf9|Sf21|H5 E. Coli   Yeast Green algaea Ganoderma
Pressure 600-800bar   8500-11500psi 600-1000bar 8500-14500psi 800-1000bar 11500-14500psi 1200-1400bar 17500-20000psi 1200-1500bar 7500-21500psi 1300-1600bar 18500-23000psi
Chamber F20Y, F20Y-RT F20Y, F20Y-RT F20Y, F20Y-RT F20Y, F12Y F20Y, F12Y F20Y, F12Y













Emulsions Oil in water emulsions
Water in oil emulsions Oil emulsion Food Liposome (o/w) Liposome (w/o)
Sample Fat emulsion| Prostaglandin Cosmetics Dimethicone|Fuel Milk Doxorubicin DNA|lipopolyplex
Pressure ~20,000psi ~10,000psi ~20,000psi ~10,000psi ~20,000psi ~8,000psi
Chamber F20Y, F12Y F20Y F20Y, F12Y F20Y F20Y, F12Y F20Y

















Dispersions Pigments
Drugs/Creams Battery Particle aggregation Graphene Nanotubes
Sample Inks, Coatings Norfloxacin, Isoxyl Lithium/Solar cell Nano fibril Graphene Carbon Nanotubes
Pressure ~25,000psi ~20,000psi ~20,000psi ~25,000psi ~20,000psi ~20,000psi
Chamber F20Y, F12Y F20Y, F12Y F20Y, F12Y F20Y, F12Y F20Y, F12Y F20Y, F12Y
