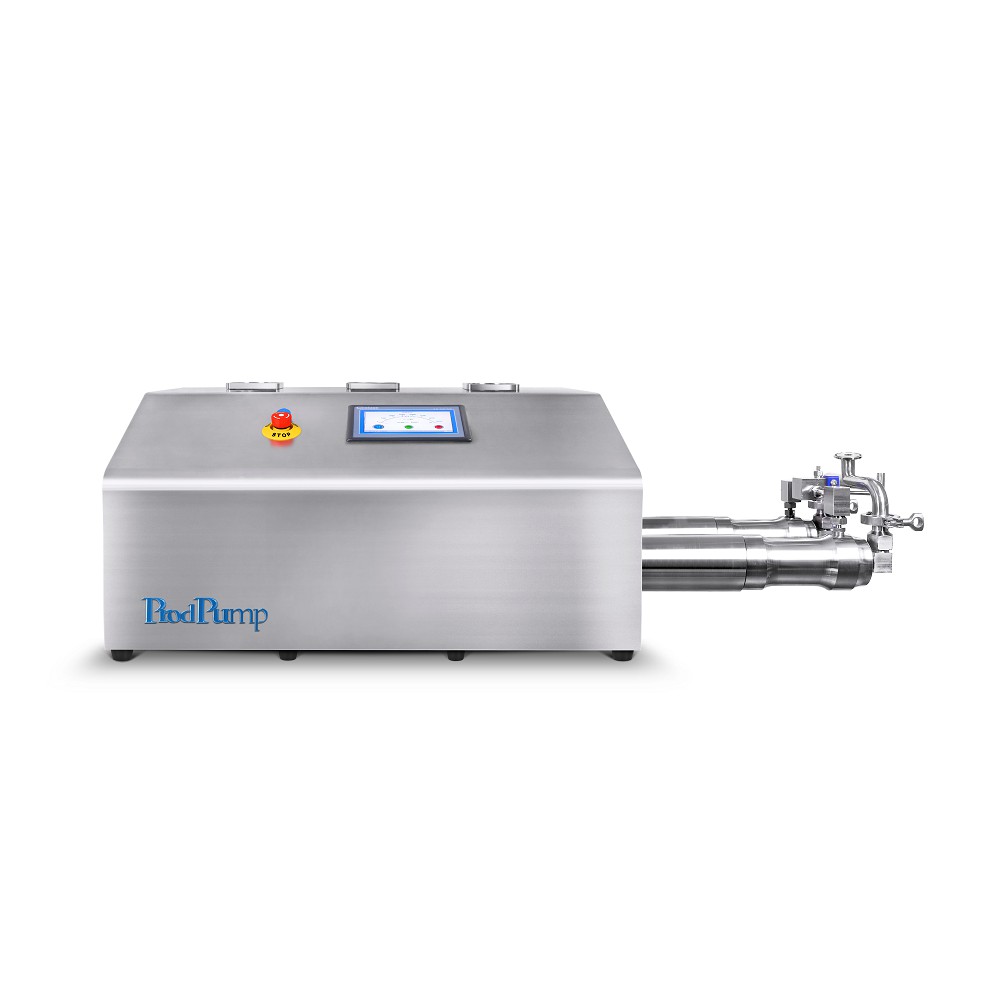

Pilotpump (Sanitary Stainless)

Sanitary PilotPump is used for sanitary transfer of pilot sample of fluid with pressure
Catalog Number: Cat. Pilotpump
    Please select the information you wantX
  • Pressure/Flow Rate:
    1500bar(20L/hr) 1200bar(20L/hr) 1000bar(25L/hr) 800bar(30L/hr) 600bar(30L/hr) 500bar(60L/hr) 300bar(80L/hr)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
  • Description
  • How to Use
  • FAQ and Tips
  • How to Order
Description:
Sanitary High Pressure Piston Dual Pump is used for sanitary transfer of large sample of fluid with continuous pressure. The flow rate is controllable.

Application:
Sanitary Pump is used with Genizer Online Liposome Extruders for testing preparation of liposome and lipopolyplex for drug and gene delivery. Sanitary Pilot Pump is made with materials of pharmaceutical grade.

Performance:
Sanitary High Pressure Piston Dual Pump can be used with Genizer Online Liposome Extruders for manufacture production of liposome and lipopolyplex with continuous pressure. Sanitary High Pressure Piston Dual Pump is movable and compliance with FDA and GMP sanitary standards.

Specification
Catalog No. PilotPump-1500 PilotPump-1000 PilotPump-800 PilotPump-500 PilotPump-300
Flow rate 20L/hr 25L/hr 30L/hr 60L/hr 80L/hr
Min. Sample Size 100mL 100mL     100mL     200mL 200mL
Max. Pressure 1500bar          1000bar 800bar 500bar 300bar
Dimensions(cm) 120 × 60 × 40 120 × 60 × 40 120 × 60 × 40 120 × 60 × 40 120 × 60 × 40
Weight 120 kg (260lbs)
Max. Temp. 80ºC (176ºF)
Power 220V/380V/440V
Cleaning Flush to clean
Application Pump to Liposome Extruder in Production Scale, Sanitary transfer of Liquid; Stainless pump, Sanitary pump the liquid in the pharmaceutical or biological applications, Oil, Alcohol, Emulsion, Liposome, Sticky liquid and solid suspension, Nano or Fat emulsion, Liposome, Nano Dispersion, Cell Disruption
Sterilizing Flush to Cleaning/CIP/SIP

Standard Features
Parts 1 set of Diamond interaction chamber
Control System High pressure programming control systems®: Touch Screen, Speed control, Auto stop control by volume, time, pressure or temperature, settable volume control as low as 10mL, display of flow rate and time, overload protection
Pressure Gauge Electric
Inlet type 1" Triclamp
Outlet type 1" Triclamp
Inlet Reservoir 1L Stainless Cylinder or Online
Outlet Reservoir 1L Stainless Cylinder or Online
Product material 316L stainless steel, Tungsten Carbide, Viton, Teflon, UHMWPE
Material standard Pharmaceutical Grade, FDA, GMP
Warranty 1 year against any manufacturing defects

Option Features
Parts High Pressure Extruders, Homogenizing valves, Heat Exchanger
Cooling System Sanitary Heat Exchanger (HPE350 or HPE450)
Detector Pressure gauge, Pressure transducer, Temperature transducer
Intlet type Luer or 1" or 2" Triclamp or 3/8" High pressure coupling
Outlet type Luer or 1" or 2" Triclamp or 3/8" High pressure coupling
Inlet Reservoir 1 liter, 2 liter stainless steel open reservoir; 2 liter, 5 liter pressurized stainless steel reservoir; Online or Tank
Outlet Reservoir Online or Tank
Cylinder Titanium High pressure Cylinder (Resistant to strong acid and base)


Varieties of Inlet and Outlet for PilotPump
Inlet:  Syringe; Open Container; Stainless Steel Cylinder
Outlet: Syringe; Open Container; Stainless Steel Cylinder
High Pressure Homogenizer Inlet and Outlet

PRESSURE AND CHAMBER SELECTION FOR VARIOUS APPLICATIONS with NANOGENIZER

Cells Mammalian cell
Insect cell Bacteria cell Yeast cell Algae cell SPore
Sample CHO|Hela Sf9|Sf21|H5 E. Coli   Yeast Green algaea Ganoderma
Pressure 600-800bar   8500-11500psi 600-1000bar 8500-14500psi 800-1000bar 11500-14500psi 1200-1400bar 17500-20000psi 1200-1500bar 7500-21500psi 1300-1600bar 18500-23000psi
Chamber F20Y, F20Y-RT F20Y, F20Y-RT F20Y, F20Y-RT F20Y, F12Y F20Y, F12Y F20Y, F12Y













Emulsions Oil in water emulsions
Water in oil emulsions Oil emulsion Food Liposome (o/w) Liposome (w/o)
Sample Fat emulsion| Prostaglandin Cosmetics Dimethicone|Fuel Milk Doxorubicin DNA|lipopolyplex
Pressure ~20,000psi ~10,000psi ~20,000psi ~10,000psi ~20,000psi ~8,000psi
Chamber F20Y, F12Y F20Y F20Y, F12Y F20Y F20Y, F12Y F20Y

















Dispersions Pigments
Drugs/Creams Battery Particle aggregation Graphene Nanotubes
Sample Inks, Coatings Norfloxacin, Isoxyl Lithium/Solar cell Nano fibril Graphene Carbon Nanotubes
Pressure ~25,000psi ~20,000psi ~20,000psi ~25,000psi ~20,000psi ~20,000psi
Chamber F20Y, F12Y F20Y, F12Y F20Y, F12Y F20Y, F12Y F20Y, F12Y F20Y, F12Y
