Mixing Diamond Interaction Chamber

Mixing Diamond Interaction Chamber specially designed for multiple inlet ports.
Catalog Number: Mix-DIXC
Price:
USD
Login for Price
Mixing_Chamber_English
Mixing_Chamber_English
    Please select the information you wantX
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units
Add to Favorite list Inquire Now
  • Description
  • How to Use
  • FAQs and Tips
  • How to Order
Description:

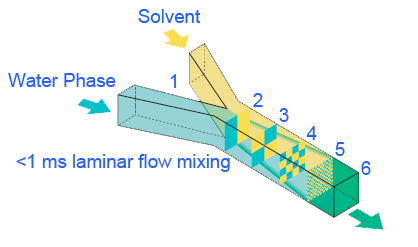

Mixing Diamond Interaction Chamber (DIXC) is a chamber specially designed for mixing and homogenizing the sample fluids from two or more inlet ports. The multiple streams will mix homogenously at the diamond mixing chamber where the fluids pass through the fixed micro-channels and experience high shears and strong impacts.
Mixing Diamond Interaction ChamberMixing Diamond Interaction Chamber

Application:

Nanoemulsion, cell disruption, nanodispersion, deagglomeration, liposome

Performance:

Electro-polishing and inner passivation for pharmaceutical applications
Real-time cooling option to reduce oversized particles
Lower cost and higher quality

Specifications
Description Mixing diamond interaction chamber
Brand Genizer  with high quality
Compatibility MixGenizer
Dimensions
W × D × H		 35mm × 45mm × 85mm
Weight 1 lb (0.5kg)
Cleaning Flush to clean
Sterilization Whole unit autoclavable
Pressure Range 20,000 psi; 30,000 psi
Chamber Type Available Y2F12Y, Y2F20Y, Y2F30Y, Y2F30Y-2, Y2F30Y-3, Y2F30Y-4, Y2F30Y-5, Y2F30Y-6

Standard Features
Chamber Type Mixing diamond interaction chamber:
Y2F12Y, Y2F20Y, Y2F30Y, Y2F30Y-2, Y2F30Y-3, Y2F30Y-4, Y2F30Y-5, Y2F30Y-6
Max. Pressure 30,000 psi
Product Material 316L stainless steel, diamond
Polishing Condition Electro-polish and passivation for pharmaceuticals
Warranty 1 year against any manufacturing defects

Option Features
Chamber Type Mixing diamond interaction chamber:
Y2F12Y-RT, Y2F20Y-RT, Y2F30Y-RT, Y2F30Y-2-RT, Y2F30Y-3-RT, Y2F30Y-4-RT, Y2F30Y-5-RT, Y2F30Y-6-RT
Customer Made Customized laser mark, dimensions and fittings
Max. Pressure 45,000 psi
Product Material Titanium (resistant to strong acid and base)
Product Cooling Real-time cooling on chamber


1) Keep 2-3 turns of thread be visible on the end of the tubing

High Pressure Fitting

2) For maximizing the stability of the nanosize or bioactivity, please select RT chambers
Diamond Interaction Chambers Diamond Interaction Chambers
Is this compatible with Microfluidizer?
All the chambers are compatible with any type of Microfluidizer.

What is the material of the chambers?
All chambers are diamond interaction chambers instead of ceramic.

What if the chambers are blocking?
By flow reversing the chamber, the blocking can be resolved. In addition, Genizer's high-pressure homogenizers have a unique anti-blocking system that can minimize most of the blocking of the chambers.

How do you confirm the chamber's connection size?
For those Y-Type Diamond Interaction Chambers with female openings, its tubing connection size could be 1/4" or 1/8".
Below is a drawing showing DIXC's female opening details corresponding with its tubing size:
Diamond Interaction Chamber


For those Y-Type Diamond Interaction Chambers with male connections, its tubing connection size could be 9/16" or 3/8".
Below is a drawing showing DIXC's male connection details corresponding with its tubing size:
Diamond Interaction Chamber




1. Order the unit from your local agent (recommended)


2. Add the item to the cart, get an online quote from our website and confirm the order and payment accordingly. (recommended and economical)
Diamond Interaction Chamber

3. Email us to get a quote

4. Order and pay online from the website if the total amount is under $2,500.00.
